my blender customizations
22.04.2020
THIS POST IS BEING UPDATED
i got some different key bindings.
all the addons i use will be described in separate post.
- all my layouts have ’lock to 3d cursor’ checked.
i can’t imagine my life without 3d cursor now, this tool is simply genius.
- modeling workspace turned to object mode by default.
- default rendering engine is switched to cycles.

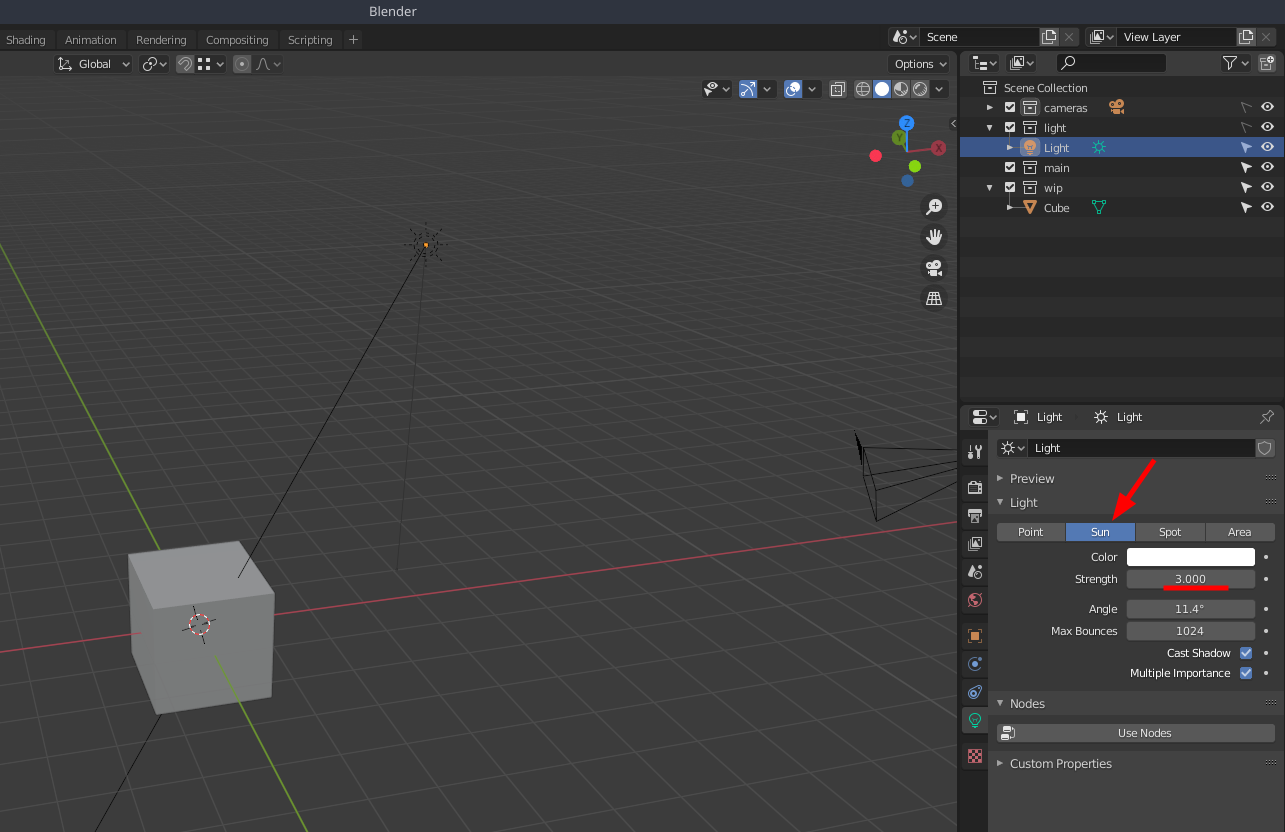

- light is changed to sun with the strength of 3.
- shading section has an option to toggle ‘selectable’.
- first layout called ’layout’ is turned into full 3d visualization.
- i’ve created separate collections for cameras and light, also turned ‘selectable’ restriction to visible, so i can make ‘cameras’ and ’lights’ collections unselectable to prevent accidental move. ‘wip’ collection for things i model atm, ‘main’ for finished things and ‘ref’ for references.
- when i hit f12 (render button) i expect to see my interface untouched, i want to see my render only in ‘image view’ as ‘render result’, so in system settings go to interface:
- length of backup sequence is 4 copies and timer is 5 mins, so i can have a 20min earlier copy in case i’ve lost something without noticing it.
- resolution - 30% from 1080p, frame rate - 60fps, auto save render (from addon ‘auto save render’).
- samples set to 500 for both viewport and render
- transparent background.
- snap type is vertex, so i can snap to vertecies while holding ctrl.
- auto merge is on. remember, if the threshold is too low, you can sometimes have an issue, that when you grab a bunch of vertices which are too close to each other, they will disappear (they will be automerged).
- if you want to have ambient occlusion in the ‘material preview’, go switch the main renderer to eevee, turn on AO and switch back.
- hdri is packed into the startup file.
its cc-0 and was downloaded from hdrihaven.com, link:
https://hdrihaven.com/hdri/?h=cayley_interior
- clip start is set to .001 in all tabs, so some parts of the model won’t be cut away in the viewport when you zoom in.

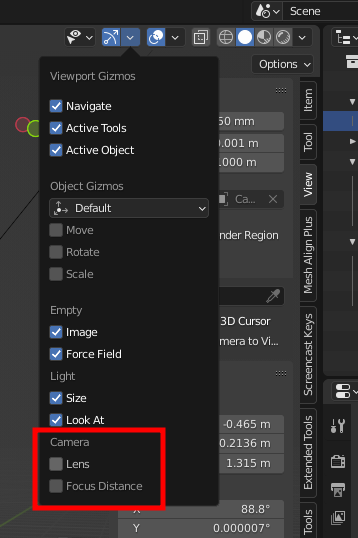

- even though I have my cameras collection unselectable,
sometimes I need to make changes and turn them back on. And I may accidently drag their handles of lens and focal distance:
So in my startup file these handles are turned off by default:
